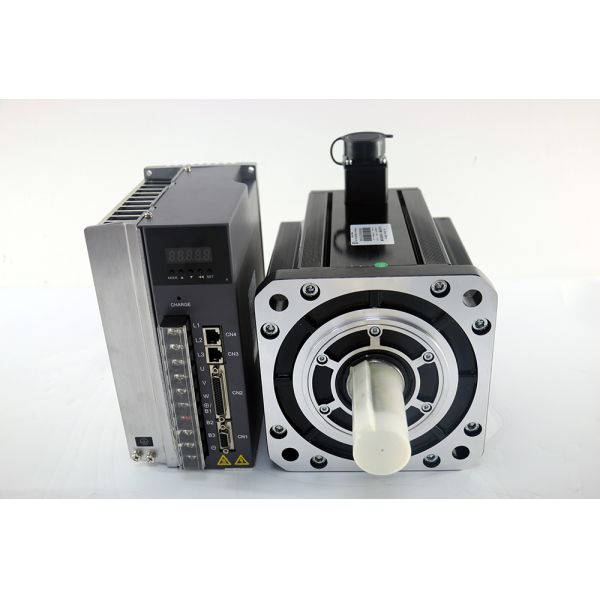

Lichuan 7.5KW 220V 23Bit 3 Phase Servo Motor With Drive Controller 180M48015B+M1532P

Name: Lichuan 75KW 220V 23Bit 3 Phase Servo Motor With Drive Controller 180M48015BM1532P
Brand: LICHUAN
Price: 945.90 USD

Buy cheap Lichuan 7.5KW 220V 23Bit 3 Phase Servo Motor With Drive Controller 180M48015B+M1532P product

Model Number : 180M48015B+M1532P

Brand Name : LICHUAN

Place of Origin : Guangdong, China

MOQ : 2 pieces

Price : $945.90-1,052.10 / piece

AC Voltage : 220V

Phase : Three-Phase

Rated Power : 7.5KW

Rated Speed : 1500 RPM

Efficiency : IE 2

Frame : 180mm

Frequency : 50/60Hz

Motor Mounting Type : Flange

Protect Feature : waterproof

Type : Servo Motor

Warranty : 3 months ~ 1 year

Rated Power ( w ) : 7.5KW

Rated Votage ( v ) : 220

Rated current( A ) : 20

Rated speed (rpm) : 1500

Holding torque(N.m) : 48

Weight (kg) : 40

Encoder line number (PPR) : 2500

Motor size : Flange 180

Ambient Temperature : -20℃-50℃

Application : CNC machine

Contact Now

LiChuan 180M48015B+M1532P high position 7.5KW 220V ac servo motor with servo drive controller servo motor for cnc machine

NO.	Product Name	Model / Description	Qty
1	Lichuan 7.5KW 180M48015B Servo Motor	LCMT-75MCC23NB-180M48015B	1
2	Lichuan 7.5KW AC Servo Driver	LCDA-7521C23-M1532P	1
3	Motor Cable	Standard (3m)	1
4	Encoder Cable	Standard (3m)	1
5	Servo Driver Instruction Book	Standard	1

Product Description

Product Name: 180 series AC servo motor

Lichuan 180 series AC servo motor includes 2.7KW, 2.9KW, 3KW, 3.7KW, 4.3KW, 4.5KW, 5.5KW, 7.5KW power specifications, the motor adopts Japan Tamagawa 2500 cable encoder, advanced magnetic circuit design and resistance High-temperature permanent magnet materials, servo motor running smoothly, the noise is very small, suitable for a variety of industrial automation equipment, high-precision control applications

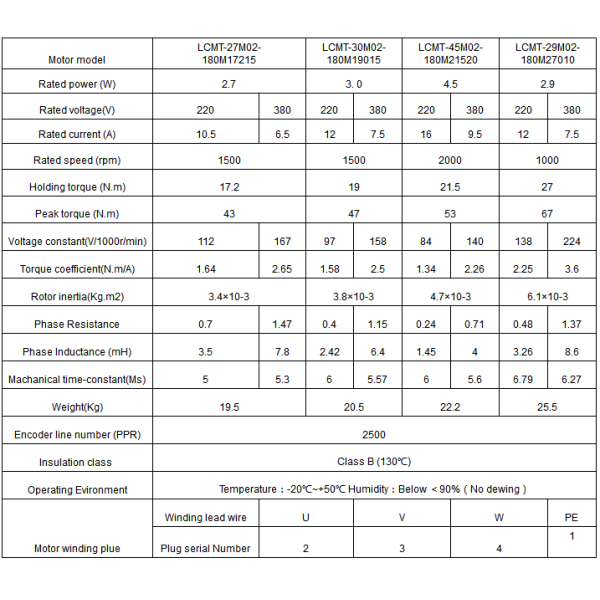

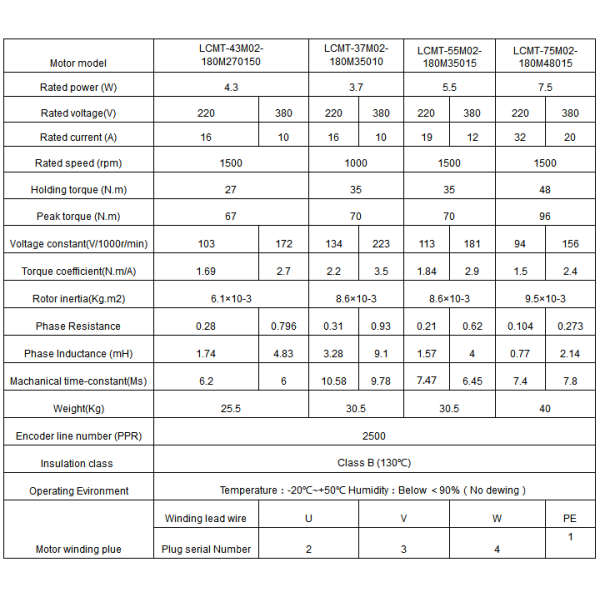

180mm Series Servo motor parameter specification :

Lichuan 7.5KW 220V 23Bit 3 Phase Servo Motor With Drive Controller 180M48015B+M1532P

Encoder Plug	Signal lead wire	5V	0V	A+	B+	Z-	A-	B-	Z-	U+	V+	W+	U-	V-	W-	PE
Encoder Plug	Plug serial number	2	3	4	5	6	7	8	9	10	11	12	13	14	15	1

Encoder Plug	Signal lead wire	5V	0V	A+	B+	Z-	A-	B-	Z-	U+	V+	W+	U-	V-	W-	PE
Encoder Plug	Plug serial number	2	3	4	5	6	7	8	9	10	11	12	13	14	15	1

Suitable for a variety of sports control automation equipment and equipment, such as: mechanical arm, cutting machine, fuel injection machine, ultrasonic equipment, feeding equipment, printing equipment, medical equipment, packaging equipment, lithium battery equipment, CNC lathes, spraying equipment, Equipment and so on.
